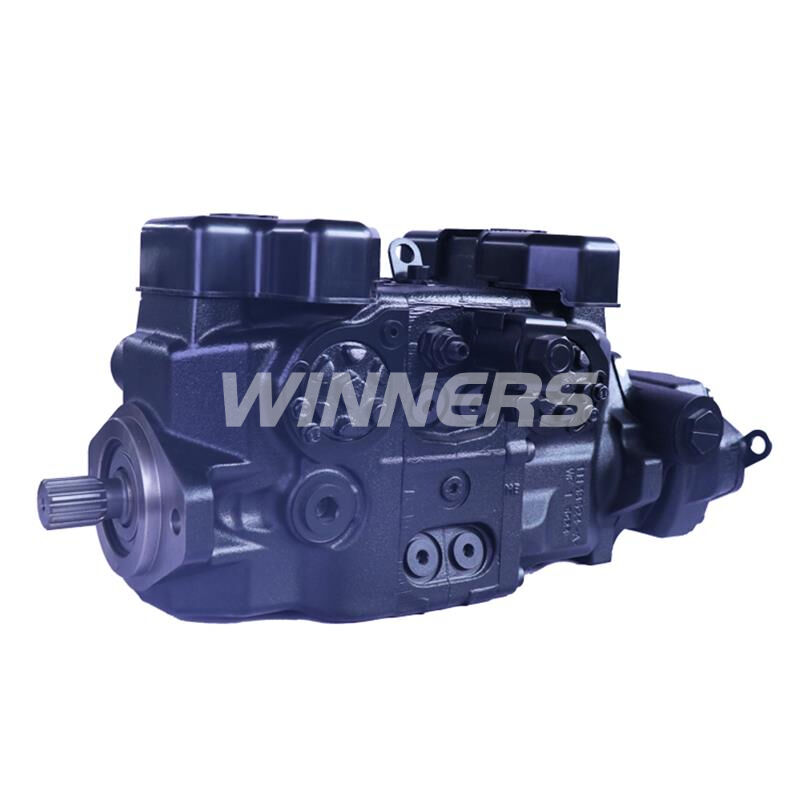

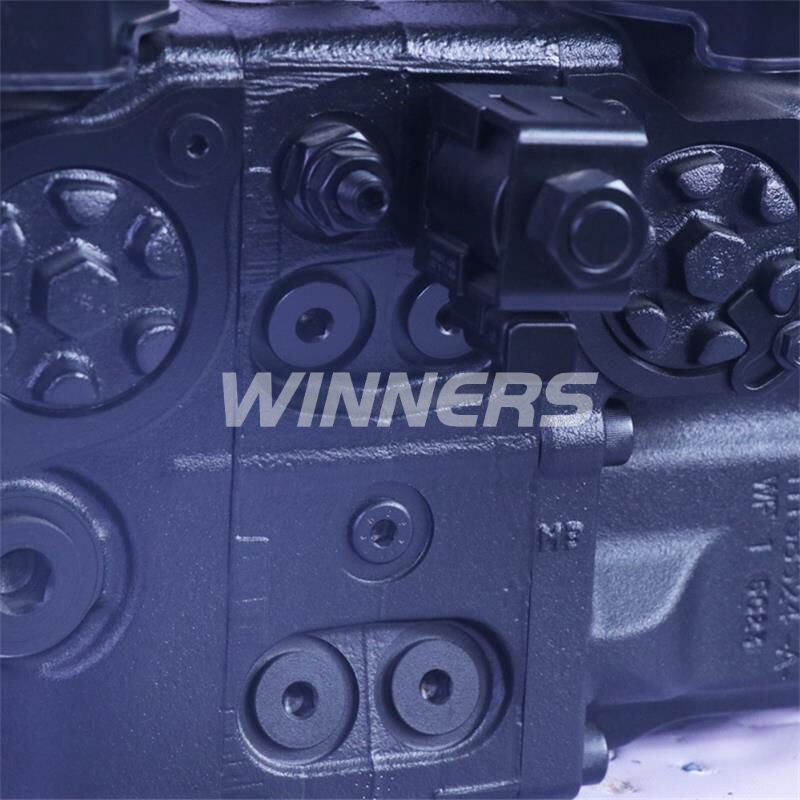

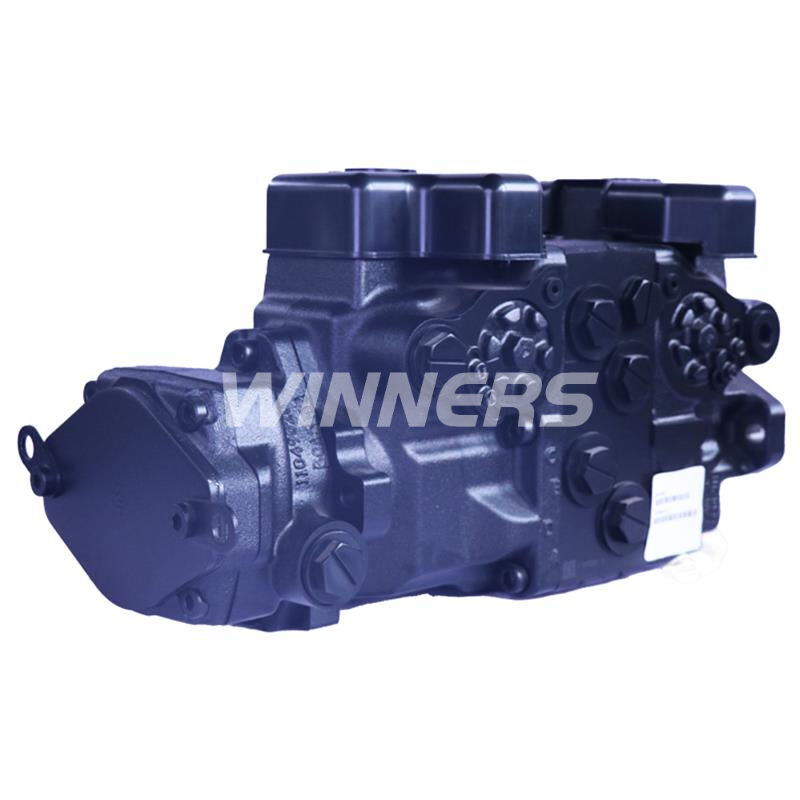

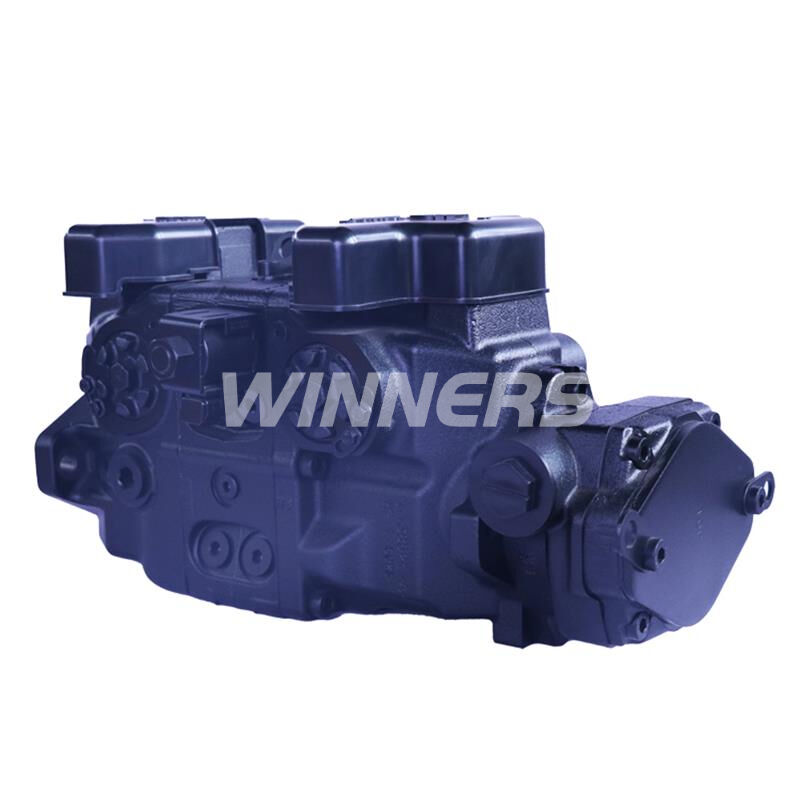

H1T053 Series Hydraulic Pump - High Pressure 380-420 Bar Axial Piston Pump for Construction & Agricultural Machinery
- Sauer Pump: H1T053
- Price: $1,500 - $2,500
- Dimensions: 203030 cm
- Minimum Order Quantity: 1 unit
- Delivery Quantity: 10 units (7 days)
- Overview
- Recommended Products
-
①Experience You Trust:
Decades of specialization guarantee high-performing hydraulic parts via technical excellence. -
②Order Your Way:
Small-order friendly MOQs (piece by piece) to align with your unique workflow and inventory strategy. -
③All Hydraulic Needs Covered:
Broad array of pumps, motors, and reducers for any technical challenge. -
④Build Your Brand:
Full OEM/ODM support customizes designs to your exact specifications and identity. -
⑤On-Time, Every Time:
Dependable logistics prioritize quick shipments to maintain your operational rhythm. -
⑥Always Here for You:
24/7 expert support with responsive problem-solving from purchase to post-delivery.
Why Choose Our H1T053 Hydraulic Pump?
The H1T053 series is a high-performance integral tandem axial piston pump engineered for heavy-duty industrial applications. With its exceptional pressure resistance, energy-efficient design, and durable construction, it has become the preferred choice for professionals in construction, agriculture, and mining sectors worldwide. Whether powering excavators, harvesters, or hydraulic presses, this pump delivers consistent performance even in the harshest working environments.
|
Ultra-High Pressure Capacity Rated pressure up to 380 bar and maximum pressure reaching 420 bar, easily handling heavy-load operations without performance degradation . |
Energy-Saving Efficiency Adopts optimized flow channel design and low-friction components, with volumetric efficiency over 90% to reduce energy consumption . |
Long Service Life Key parts made of high-strength alloy steel, with precision machining to ensure wear resistance and anti-corrosion performance . |
Technical Specifications
Detailed parameters to ensure perfect matching with your equipment:| Characteristic | Value | Description |
| Product Series | H1T | Integral tandem axial piston pump |
| Frame Size | 053 | 53 cc/rev max displacement |
| Rated Pressure | 380 Bar | Stable working pressure for heavy loads |
| Maximum Pressure | 420 Bar | Withstands peak pressure during operation |
| Rated Speed | 3400-3500 RPM | Optimal working speed range |
| Speed Range | 500-4000 RPM | Adaptable to different equipment needs |
| Control Type | Electrical Displacement Control | 12V Deutsch DT 04-2P connector |
| Mounting Flange | SAE B 2 Bolt Flange | Requires M12 screws and hardened washers |
| Input Shaft | 14 Tooth, 12/24 | Standard interface for easy connection |
| Material | Cast Iron | High strength and corrosion resistance |
| Dimensions (L×W×H) | 46×21×26 cm | Compact structure for space-saving installation |
| Net Weight | 65 kg | Sturdy build without excessive weight |
Application Scenarios
The H1T053 hydraulic pump is widely used in various fields requiring high-pressure hydraulic power, perfectly matching with:
•Construction Machinery: Excavators, loaders, bulldozers, and cranes - provides stable power for lifting and digging operations .
•Agricultural Machinery: Combine harvesters, tractors, and agricultural irrigation equipment - adapts to dusty and variable outdoor environments .
•Industrial Equipment: Hydraulic presses, metal processing machines, and plastic injection molding machines - ensures precision control of pressure and flow .
•Marine & Mining: Ship steering systems, mining trucks, and drilling equipment - resists corrosion and heavy vibration .
Product Features & Advantages
Intelligent Pressure Control: Equipped with high-pressure relief valve (380 bar for all sides) to prevent overpressure damage, ensuring safe operation .
Flexible Installation: Same-sided port O-ring design with SAE standard flange, compatible with most equipment on the market .
Low Noise Operation: Optimized plunger movement trajectory and flow channel design, reducing operating noise to improve working environment .
Easy Maintenance: Remote full-flow filtration design, convenient for oil filter replacement and equipment maintenance .
Installation & Maintenance Tips
1.Oil Selection: Use ISO VG 32# or 46# anti-wear hydraulic oil to ensure lubrication and corrosion resistance .
2.Installation Note: Ensure the input shaft is correctly aligned with the drive device to avoid abnormal wear .
3.Regular Maintenance: Replace hydraulic oil and filter every 2000 working hours; check oil level and pressure regularly .
4.Storage Requirement: Store in a dry and ventilated environment, avoid direct sunlight and rain soaking .
Packaging & Shipping
Packaging: Customized wooden box (100×90×88 cm) with shock-absorbing foam inside to prevent damage during transportation .
Shipping Options: DHL/FedEx for urgent orders (3-7 days); Sea freight for bulk orders (20-35 days) - door-to-door service available.
Advantage
Application Scenarios
1. Construction Machinery Applications
Our hydraulic components power critical construction equipment including excavators, bulldozers, and road rollers, ensuring robust performance in earthmoving, compaction, and paving operations. Ideal for high-load environments, our pumps and motors deliver precision control for drilling rigs, pavers, and concrete mixers, enhancing efficiency on demanding job sites.
2. Heavy-Duty Transport Solutions
Designed for concrete pump trucks, mixing transport vehicles, and pile drivers, our systems provide reliable power transfer and durability. With superior pressure stability, they maintain consistent operation in concrete pouring, long-haul material transport, and foundation piling applications.
3. Industrial Manufacturing Equipment
From polyurethane foaming machines to ceramic presses, our hydraulics enable precise pressure control for plastic molding, aluminum extrusion, and ceramic production. Engineered for continuous industrial cycles, they minimize downtime in high-temperature and high-wear processes.
4. Marine & Aviation Systems
Trusted in ship machinery like rudder controls, deck cranes, and dredging vessels, our components withstand corrosive marine environments. For aviation ground support, they power trenching boats and anchor handling systems with exceptional leak-proof performance and vibration resistance.
Company Profile
Baoding Winners Trading Co., Ltd. is a professional hydraulic components supplier, integrating design, manufacturing, and sales with strong factory support. Backed by a skilled technical team, extensive inventory, and reliable after-sales service, we have established ourselves as a trusted partner in the global hydraulic industry.
We specialize in supplying high-quality hydraulic pumps, motors, reducers, and excavator hydraulic components, featuring top brands such as Rexroth, Sauer, Uchida, Kawasaki, Hitachi, Vickers, Parker, and Harvey. Our product range also includes excavator hydraulic motors, reducers, engines, and vehicle hydraulics, compatible with leading machinery brands like Komatsu, Hitachi, Kobelco, Sumitomo, Volvo, and San-Atlas.
With a commitment to excellence, we provide durable, high-performance hydraulic solutions tailored to meet the demands of construction and industrial applications worldwide.
Our team
Recognized at industry exhibitions worldwide, our hydraulic components consistently receive high praise for performance and reliability. Let’s meet at the next event to explore how we can support your projects!
FAQ
Q1: Is the H1T053 pump compatible with my existing hydraulic system?
A1: It supports ANSI O-ring boss port configuration, which is compatible with most standard hydraulic systems. Please provide your system parameters for further confirmation.
Q2: Can I get a customized version for low-temperature working conditions?
A2: Yes, we provide customized services for special working conditions (low temperature, explosion-proof, etc.). Please contact our technical team for details.
Q3: What is the warranty period?
A3: We offer a 12-month warranty from the date of delivery, covering manufacturing defects (excluding damage caused by improper use).
